Nadaswaram

The tradition & historical record

The nadaswaram (Tamil: நாதஸ்வரம்) (Malayalam: നാദസ്വരം) is a double reed wind instrument from Tamil Nadu. It is used as a traditional classical instrument in Tamil Nadu, Andhra Pradesh, Telangana, Karnataka, Kerala and in the northern and eastern parts of Sri Lanka. This instrument is "among the world's loudest non-brass acoustic instruments". It is a wind instrument partially similar to the North Indian shehnai, but much longer, with a hardwood body, and a large flaring bell made of wood or metal, and also with a double reed rather than a quadruple reed. In South Indian culture, the nadasvaram is considered to be very auspicious, and it is a key musical instrument played in almost all Hindu weddings and temples of the South Indian tradition. It is part of the family of instruments known as mangala vadyam (lit. mangala "auspicious", vadya "instrument"). The instrument is usually played in pairs, and accompanied by a pair of drums called thavil; it can also be accompanied by a drone from a similar oboe, called the ottu. ¹

The nadasvaram is referred to in many ancient Tamil texts, including inscriptions documenting Vijayanagara land grants (mid-1400s) and Achyuta Deva Raya inscriptions (c. 1530s); in these inscriptions the instrument's name is spelled nagaswaram or nakaswaram. The 17th-century musical treatise Padasangraham (பாதசங்கிரகம்) also refers to an instrument called nagaswaram. The Cilappatikaram epic (c. 5th century) mentions an instrument called the vangiyam (although this instrument was probably a transverse flute). The structure of this instrument matches that of a nadasvaram. Since there are seven holes played with seven fingers, this was also called as the "eḻil". This instrument, too, is played in Tamil Nadu, and is popular among the Tamil diaspora. ¹

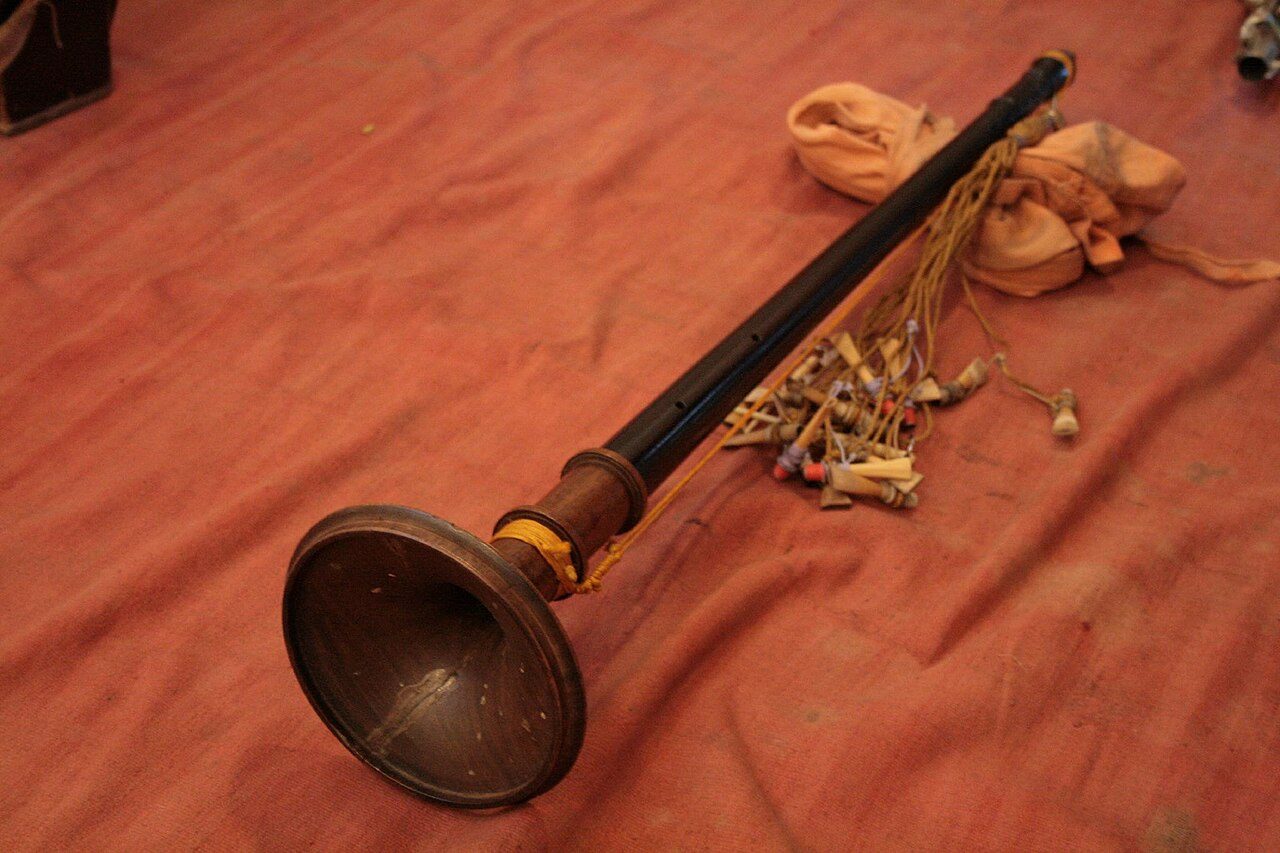

The nadasvaram contains three parts namely, kuḻal, thimiru, and anasu. It is a double reed instrument with a conical bore that gradually enlarges toward the lower end. The top portion has a metal staple (mel anaichu) into which is inserted a small metallic cylinder (kendai) which carries the mouthpiece made of reed. Besides spare reeds, a small ivory or horn needle is attached to the instrument, and used to clear the reed of saliva and other debris and allows free passage of air. A metallic bell (keeḻ anaichu) forms the bottom end of the instrument. The seevali, or reed, is made from a dried grass. Traditionally the body of the nadasvaram is made out of a tree called aacha (Tamil ஆச்சா; Hindi अंजन), although nowadays bamboo, sandalwood, copper, brass, ebony, and ivory are also used. For wooden instruments, old wood is considered the best, and sometimes wood salvaged from demolished old houses is used. The nadasvaram has seven finger-holes, and five additional holes drilled at the bottom that can be stopped with wax to modify the tone. The nadasvaram has a range of two and a half octaves, similar to the Indian bansuri flute, which also has a similar fingering. Unlike the flute where semi and quarter tones are produced by the partial opening and closing of the finger holes, in the nadasvaram they are produced by adjusting the pressure and strength of the air-flow into the pipe. Due to its intense volume and strength, it is largely an outdoor instrument and much more suited for open spaces than for indoor concerts. ¹

Some of the greatest early nadasvaram players include: ¹

T.N. Rajarathnam Pillai (1898–1956) Karukurichi Arunachalam (1921–1964) Thiruvizha Jayashankar (b. 1940) Semponnarkoil Brothers S R G Sambandam and Rajanna. Dharumapuram S. Abiramisundaram Pillai and his son Dharumapuram A Govindarajan Sheik Chinna Moulana (1924 - 1999) Sheik Mahaboob Subhani Namagiripettai Krishnan (1924–2001) S. R. D. Vaidyanathan (1929–2013) Domada Chittabbayi (1930–2002) Umapathy Kandasamy (1950–2017) American composers such as Lewis Spratlan have expressed admiration for the nadasvaram, and a few jazz musicians have taken up the instrument: Charlie Mariano (1923–2009) was one of the few non-South Asians to play the instrument, having studied it while living in India. Vinny Golia, J. D. Parran, and William Parker have performed and recorded with the instrument. The German saxophonist Roland Schaeffer also plays it, having studied from 1981 to 1985 with Karupaia Pillai. ¹

Among the Tamil movies, two released in the 1960s, namely Konjum Salangai(1962) starring Gemini Ganesan and Thillana Mohanambal(1968) starring Sivaji Ganesan, featured nadasvaram playing characters. For the Konjum Salankai movie, Karukurichi Arunasalam Pillai provided the nadasvaram music. Madurai Sethuraman and Ponnusamy brothers were employed for the nadasvaram playing duo characters Sivaji Ganesan and A.V.M. Rajan for the Thillana Mohanambal movie director AP Nagarajan dedicated this movie to legend Karukurichi Arunachalam. ¹

The text above is adapted from the Wikipedia article “Nadaswaram”, available under the Creative Commons Attribution-ShareAlike 4.0 licence. ¹

Nadaswaram is double reed wind instrument from South India, according to the structured record cited below. This entry was generated automatically from that record and has not yet been reviewed by a person familiar with the tradition. ²

The source record links this tradition to 10 external registers, which can be verified through the citation. ²
